🦊 gitlab-ci-pipelines-exporter

gitlab-ci-pipelines-exporter 允许您使用 Prometheus 或任何支持 OpenMetrics 格式的监控解决方案来监控您的 GitLab CI 流水线。

您可以在 GitLab 文档中找到更多关于它如何参与提高流水线效率的信息。

简介

这里有一些我使用这些指标制作的 Grafana 仪表板。此外，导出指标的详细列表在此维护。

流水线

grafana_dashboard_pipelines

grafana.com 仪表板 #10620

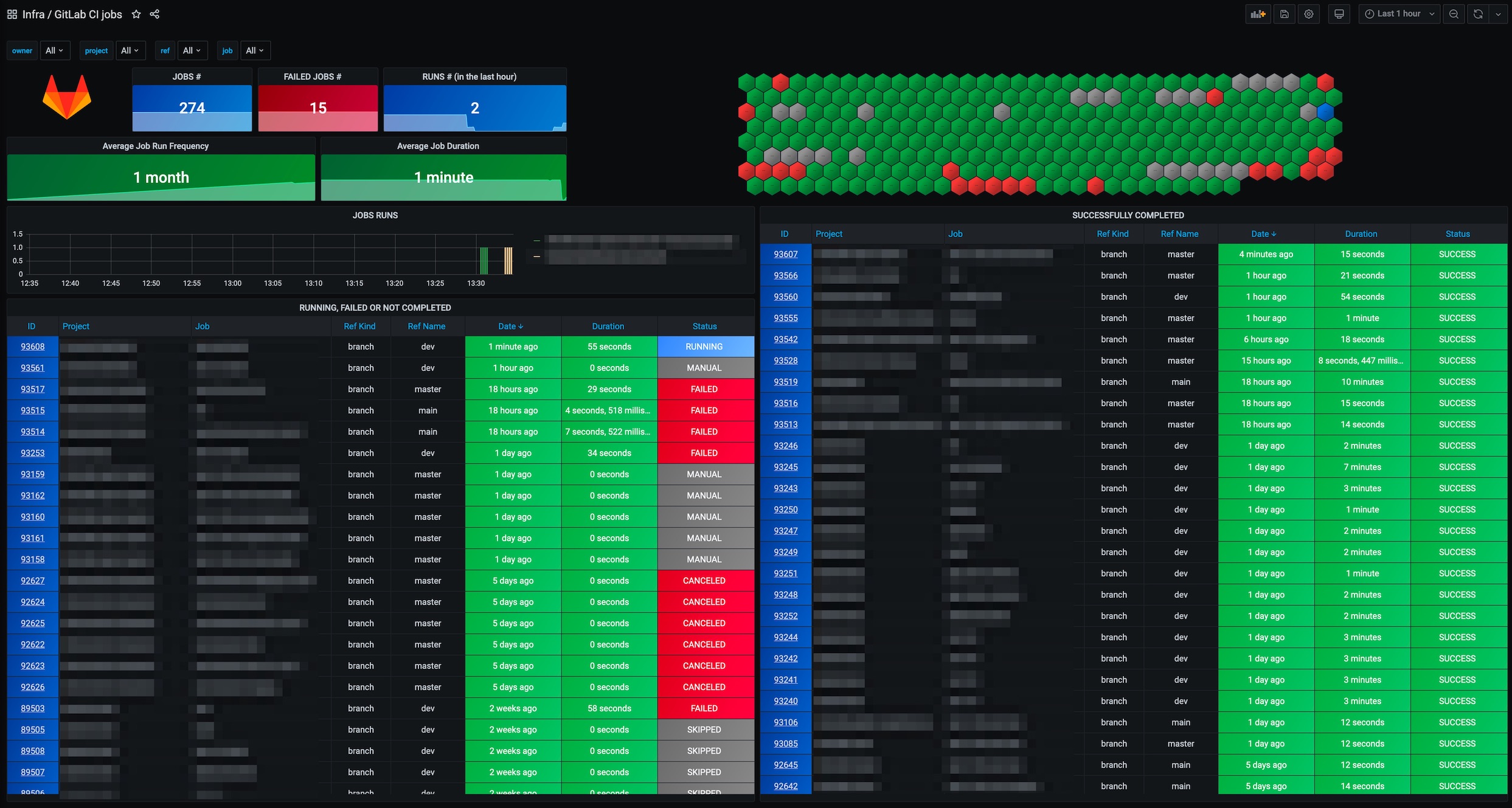

作业

grafana_dashboard_jobs

grafana.com 仪表板 #13328

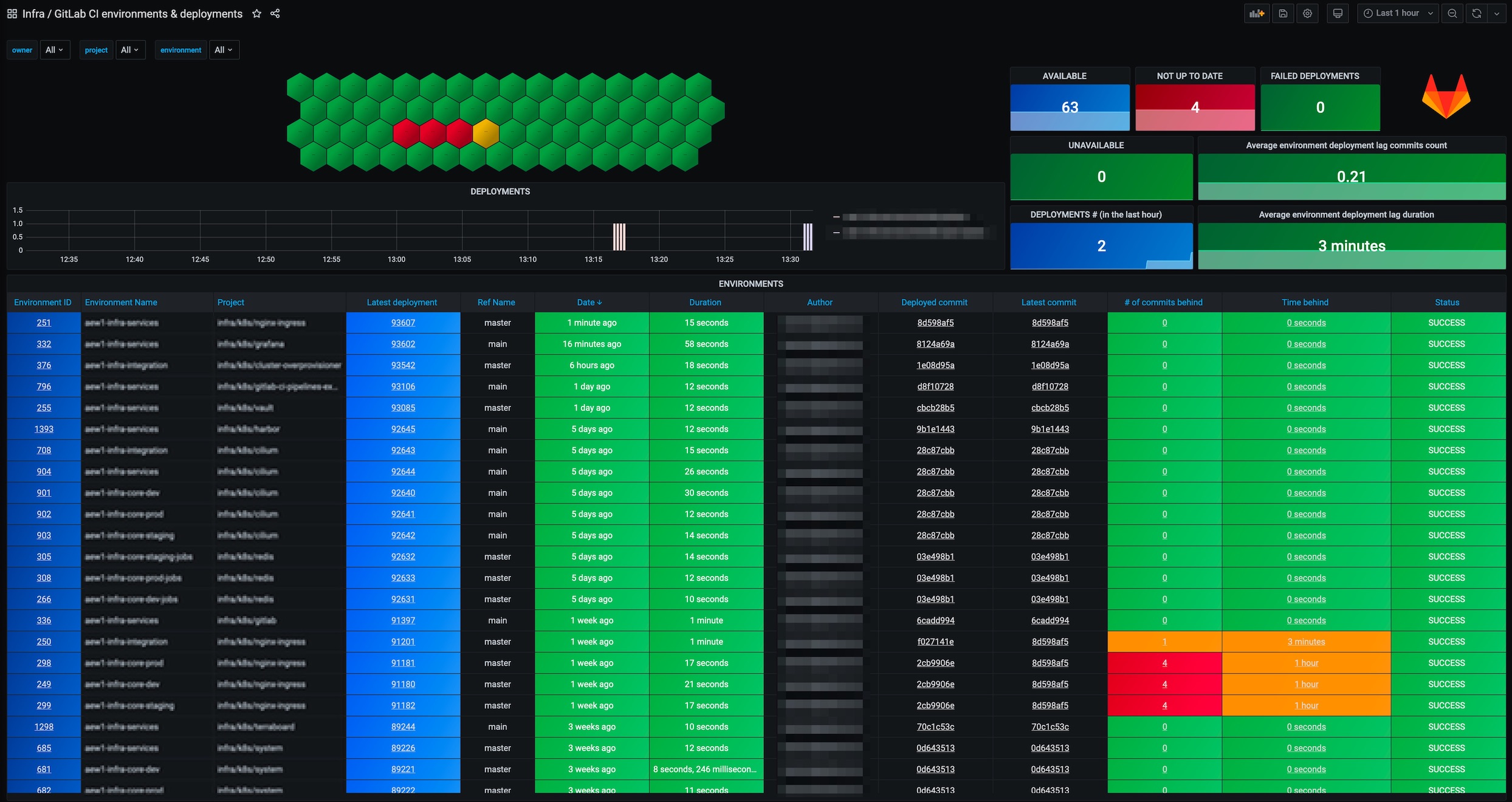

环境 / 部署

grafana_dashboard_environments

grafana.com 仪表板 #13329

如果您想快速尝试使用自己的数据，请查看 examples/quickstart 文件夹，其中包含使用 docker-compose 在 约5分钟内 配置导出器、prometheus 和 grafana 测试版本的文档。

安装

Go

~$ go run github.com/mvisonneau/gitlab-ci-pipelines-exporter/cmd/gitlab-ci-pipelines-exporter@latest

Snapcraft

~$ snap install gitlab-ci-pipelines-exporter

Homebrew

~$ brew install mvisonneau/tap/gitlab-ci-pipelines-exporter

Docker

~$ docker run -it --rm docker.io/mvisonneau/gitlab-ci-pipelines-exporter
~$ docker run -it --rm ghcr.io/mvisonneau/gitlab-ci-pipelines-exporter
~$ docker run -it --rm quay.io/mvisonneau/gitlab-ci-pipelines-exporter

Scoop

~$ scoop bucket add https://github.com/mvisonneau/scoops
~$ scoop install gitlab-ci-pipelines-exporter

NixOS

~$ nix-env -iA nixos.prometheus-gitlab-ci-pipelines-exporter

二进制文件、DEB 和 RPM 包

查看最新发布页面以选择您喜欢的版本。这里有一个获取最新版本的辅助工具：

~$ export GCPE_VERSION=$(curl -s "https://api.github.com/repos/mvisonneau/gitlab-ci-pipelines-exporter/releases/latest" | grep '"tag_name":' | sed -E 's/.*"([^"]+)".*/\1/')

# 二进制文件（例如：linux/amd64）
~$ wget https://github.com/mvisonneau/gitlab-ci-pipelines-exporter/releases/download/${GCPE_VERSION}/gitlab-ci-pipelines-exporter_${GCPE_VERSION}_linux_amd64.tar.gz
~$ tar zxvf gitlab-ci-pipelines-exporter_${GCPE_VERSION}_linux_amd64.tar.gz -C /usr/local/bin

# DEB 包（例如：linux/386）
~$ wget https://github.com/mvisonneau/gitlab-ci-pipelines-exporter/releases/download/${GCPE_VERSION}/gitlab-ci-pipelines-exporter_${GCPE_VERSION}_linux_386.deb
~$ dpkg -i gitlab-ci-pipelines-exporter_${GCPE_VERSION}_linux_386.deb

# RPM 包（例如：linux/arm64）
~$ wget https://github.com/mvisonneau/gitlab-ci-pipelines-exporter/releases/download/${GCPE_VERSION}/gitlab-ci-pipelines-exporter_${GCPE_VERSION}_linux_arm64.rpm
~$ rpm -ivh gitlab-ci-pipelines-exporter_${GCPE_VERSION}_linux_arm64.rpm

HELM

如果您想在 kubernetes 上运行它，有一个专门用于此目的的 helm chart。

您可以查看 chart 的 values.yml 以获取完整的配置选项。

# 将 helm 仓库添加到您的本地客户端
~$ helm repo add mvisonneau https://charts.visonneau.fr

# 为导出器配置最小配置
~$ cat <<EOF > values.yml
config:
  gitlab:
    url: https://gitlab.example.com
    # 您也可以使用 --gitlab-token 或 $GCPE_GITLAB_TOKEN 环境变量配置令牌
    token: xrN14n9-ywvAFxxxxxx
  projects:
    - name: foo/project
EOF

# 在 Kubernetes 集群上发布 chart
~$ helm upgrade -i gitlab-ci-pipelines-exporter mvisonneau/gitlab-ci-pipelines-exporter -f values.yml

配置语法

配置语法在此维护。

快速开始

# 在磁盘上的某个位置写入最小配置文件
~$ cat <<EOF > $(pwd)/config.yml
gitlab:
  url: https://gitlab.example.com
  # 您也可以使用 --gitlab-token 或 $GCPE_GITLAB_TOKEN 环境变量配置令牌
  token: <your_token>
projects:
  - name: foo/project
  - name: bar/project
wildcards:
  - owner:
      name: foo
      kind: group
EOF

# 如果您已安装二进制文件
~$ gitlab-ci-pipelines-exporter --config /etc/config.yml

# 否则，如果您有 docker 可用，使用方法同样简单：
~$ docker run -it --rm \
  --name gitlab-ci-pipelines-exporter \
  -v $(pwd)/config.yml:/etc/config.yml \
  -p 8080:8080 \
  mvisonneau/gitlab-ci-pipelines-exporter:latest \
  run --config /etc/config.yml

然后您应该能看到以下日志

INFO[0000] starting exporter                             gitlab-endpoint="https://gitlab.com" on-init-fetch-refs-from-pipelines=true pulling-pipelines-every=60s pulling-projects-every=15s pulling-refs-every=10s pulling-workers=2 rate-limit=10rps
INFO[0000] configured wildcards                          count=1
INFO[0000] found new project                             project-name=foo/project wildcard-archived=false wildcard-owner-include-subgroups=false wildcard-owner-kind=group wildcard-owner-name=foo wildcard-search=
INFO[0000] found new project                             project-name=foo/bar wildcard-archived=false wildcard-owner-include-subgroups=false wildcard-owner-kind=group wildcard-owner-name=foo wildcard-search=
INFO[0000] configured projects                           count=3
INFO[0000] started, now serving requests                 listen-address=":8080"
INFO[0000] found project refs                            project-path-with-namespace=foo/project project-ref=main
INFO[0000] found project refs                            project-path-with-namespace=bar/project project-ref=main
INFO[0000] found project refs                            project-path-with-namespace=foo/bar project-ref=main

这是您应该获得的指标示例，导出指标的详细列表在此维护。

~$ curl -s localhost:8080/metrics | grep gitlab_ci
# HELP gitlab_ci_pipeline_last_run_duration_seconds Duration of last pipeline run
# TYPE gitlab_ci_pipeline_last_run_duration_seconds gauge
gitlab_ci_pipeline_last_run_duration_seconds{project="foo/project",ref="dev",topics="",variables=""} 81
gitlab_ci_pipeline_last_run_duration_seconds{project="foo/project",ref="main",topics="",variables=""} 420
gitlab_ci_pipeline_last_run_duration_seconds{project="bar/project",ref="main",topics="",variables=""} 334
gitlab_ci_pipeline_last_run_duration_seconds{project="foo/bar",ref="main",topics="",variables="FOO:BAR"} 55
# HELP gitlab_ci_pipeline_last_run_id ID of the most recent pipeline
# TYPE gitlab_ci_pipeline_last_run_id gauge
gitlab_ci_pipeline_last_run_id{project="foo/project",ref="dev",topics="",variables=""} 4.0059611e+07
gitlab_ci_pipeline_last_run_id{project="foo/project",ref="main",topics="",variables=""} 1.25351545e+08
gitlab_ci_pipeline_last_run_id{project="bar/project",ref="main",topics="",variables=""} 1.33308085e+08
gitlab_ci_pipeline_last_run_id{project="foo/bar",ref="main",topics="",variables="FOO:BAR"} 1.40420947e+08
# HELP gitlab_ci_pipeline_last_run_status Status of the most recent pipeline
# TYPE gitlab_ci_pipeline_last_run_status gauge
gitlab_ci_pipeline_last_run_status{project="foo/project",ref="dev",status="canceled",topics="",variables=""} 0
gitlab_ci_pipeline_last_run_status{project="foo/project",ref="dev",status="failed",topics="",variables=""} 1
gitlab_ci_pipeline_last_run_status{project="foo/project",ref="dev",status="manual",topics="",variables=""} 0
gitlab_ci_pipeline_last_run_status{project="foo/project",ref="dev",status="pending",topics="",variables=""} 0
gitlab_ci_pipeline_last_run_status{project="foo/project",ref="dev",status="running",topics="",variables=""} 0
gitlab_ci_pipeline_last_run_status{project="foo/project",ref="dev",status="skipped",topics="",variables=""} 0
gitlab_ci_pipeline_last_run_status{project="foo/project",ref="dev",status="success",topics="",variables=""} 0
gitlab_ci_pipeline_last_run_status{project="foo/project",ref="main",status="canceled",topics="",variables=""} 0
gitlab_ci_pipeline_last_run_status{project="foo/project",ref="main",status="failed",topics="",variables=""} 0
gitlab_ci_pipeline_last_run_status{project="foo/project",ref="main",status="manual",topics="",variables=""} 0
gitlab_ci_pipeline_last_run_status{project="foo/project",ref="main",status="pending",topics="",variables=""} 0
gitlab_ci_pipeline_last_run_status{project="foo/project",ref="main",status="running",topics="",variables=""} 0
gitlab_ci_pipeline_last_run_status{project="foo/project",ref="main",status="skipped",topics="",variables=""} 0
gitlab_ci_pipeline_last_run_status{project="foo/project",ref="main",status="success",topics="",variables=""} 1
gitlab_ci_pipeline_last_run_status{project="bar/project",ref="main",status="canceled",topics="",variables=""} 0
gitlab_ci_pipeline_last_run_status{project="bar/project",ref="main",status="failed",topics="",variables=""} 0
gitlab_ci_pipeline_last_run_status{project="bar/project",ref="main",status="manual",topics="",variables=""} 0
gitlab_ci_pipeline_last_run_status{project="bar/project",ref="main",status="pending",topics="",variables=""} 0
gitlab_ci_pipeline_last_run_status{project="bar/project",ref="main",status="running",topics="",variables=""} 0
gitlab_ci_pipeline_last_run_status{project="bar/project",ref="main",status="skipped",topics="",variables=""} 0
